Single Swing Pro: Electric Swing Gate Opener Kit 660lb

Availability:
in stock, ready to be shipped
Save 50% Save 50%
Original price $639.98
Original price $639.98 - Original price $639.98
Original price $639.98
Current price $319.99
$319.99 - $319.99
Current price $319.99

Delivery time

Orders made before 2:00 PM EST will be shipped the same day. Shipping usually takes 3-7 business days.Read More

Buy More Save More

Ask a Question

Upgrade Your Security with Automatic Swing Gate Opener - Enhance Property Value and Safety!

If you're seeking advanced security beyond traditional alarms and CCTVs, an automatic swing gate opener is a vital addition. Designed for gates up to 660 pounds and 18 feet long, this electric opener is essential for your property. Its energy-efficient 50W all-copper motor ensures smooth, quiet operation at a speed of 3 feet per minute. After customizing the opening time (15, 30, 60, or 90 seconds), the gate automatically closes. With a range of up to 98 feet, the remote controls provide effective access, and manual release keys offer reliable backups.

Don't wait! Embrace a safer, more convenient tech-empowered life with just a driveway gate opener away.

Features

  • Open & Close Gates with Ease: With an energy-efficient 50W motor, this automatic swing gate opener from smoothly opens gates up to 660 lb. and 18 ft. at 3 ft. per minute
  • Customizable Closing Times: Take complete control over your gate with our electric gate opener, allowing you to set custom closing times of 15, 30, 60, or 90 seconds once the gate is open
  • Built to Withstand Any Weather: Our gate opening system is engineered to resist rain, dust, and dirt with its solid construction and IP44 casing, and can withstand extreme weather conditions from -4°F to 158°
  • Safe and Reliable Gate Operation: Our electric gate opener kit ensures maximum safety by stopping and reversing your gate's direction if people or vehicles are detected
  • Designed for Lasting Service: Featuring a powerful all-copper motor, an aluminum actuator, and a durable ABS casing, our gate opener complete kit provides years of dependable service without jamming

Specifications

  • Material:Steel, Copper, Plastic, Aluminum
  • Model:SW300DC
  • Color:Black
  • Rated Power:0.07 hp (50W)
  • Max. Torque:390 lb.-ft. (523 N·m)
  • Max. Capacity:660 lb. (300 kg)
  • Max. Piston Speed: 3 fpm (0.9 m/min.)
  • Max. Stroke Length: 13 in. (33 cm)
  • Max. Noise:58 dB
  • Operating Temp. Range:-4 to 158°F (-18 to 70°C)
  • Weatherproof Rating:IP44
  • Max. Remotes:32
  • Remote Range:98 ft. (30 m)
  • Remote Frequency:433.92 MHz
  • Power Cord Length:4 ft. 11 in. (1.5 m)
  • Dimensions:28 x 3.9 x 3.4 in. (71x10x8.6 cm)

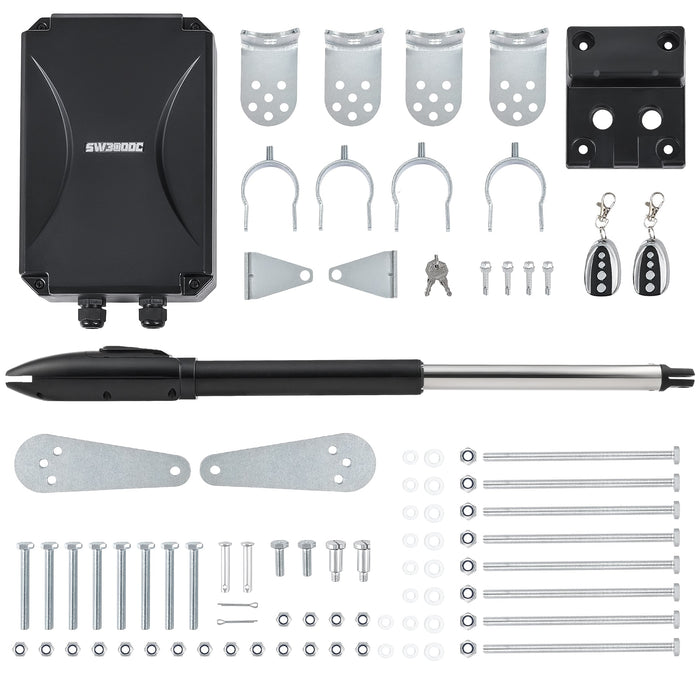

Package List

  • 1x Arm Actuator
  • 2x Manual Release Keys
  • 2x Remote Controls
  • 1x Control Box with Casing
  • 2x Post Base Brackets
  • 1x Post Pivot Bracket
  • 1x Gate End Bracket
  • 2x Gate Tube Brackets & M8 Nuts
  • 4x M10x200 Bolts, Nuts, & Washers
  • 4x M8x70 Bolts, Nuts, & Washers
  • 2x­ M8x25 Bolts, Nuts, & Washers
  • 1x Mounting Bolt, M8 Nut
  • 1x 8x40 Clevis Pin & Cotter
  • 2x 6.3x25 Self-Drilling Screws
  • 1x Limit Stop
  • 1x Warning Sign
  • 1x Instruction Manual
