AHM AX-16 | 23 HP 1.3 Ton B&S Engine Mini Excavator

AHM AX-16 | 23 HP 1.3 Ton B&S Engine Mini Excavator

Availability:
Low stock
Availability:
Low stock
Save 7% Save 7%
$8,599.99
$8,599.99 - $9,099.99
$8,599.99
$7,999.99
$7,999.99 - $8,499.99
$7,999.99
Standard Bucket Included | Black Friday Special: 15.7-inch Bucket + 🎁 FREE Hydraulic Thumb | 🔥 Save $600 Instantly 🔥
Delivery Option: No Unloading Service Needed

FREE GROUND SHIPPING

Complimentary ground shipping to the lower 48 states, with a standard shipping time of 7-14 days. UNLOADING SERVICE IS NOT INCLUDED. Please review our Shipping Policy before purchasing.

Click here to learn more about shipping details!

WAREHOUSE PICKUP AVAILABLE

We offer self-pickup at our California Warehouse. Pickup hours are 8:00 AM - 4:30 PM. For more information, please check here.

READ BEFORE YOU BUY – REFUND POLICY

Please review our Refund Policy before purchasing to understand our terms and conditions.

Creworks is an officially authorized reseller of AHM equipment and attachments. All AHM branded products sold on our website are clearly labeled and fully supported by Creworks, including warranty and after-sales service.
View Our Authorized Reseller Statement

Ask a Question

Description

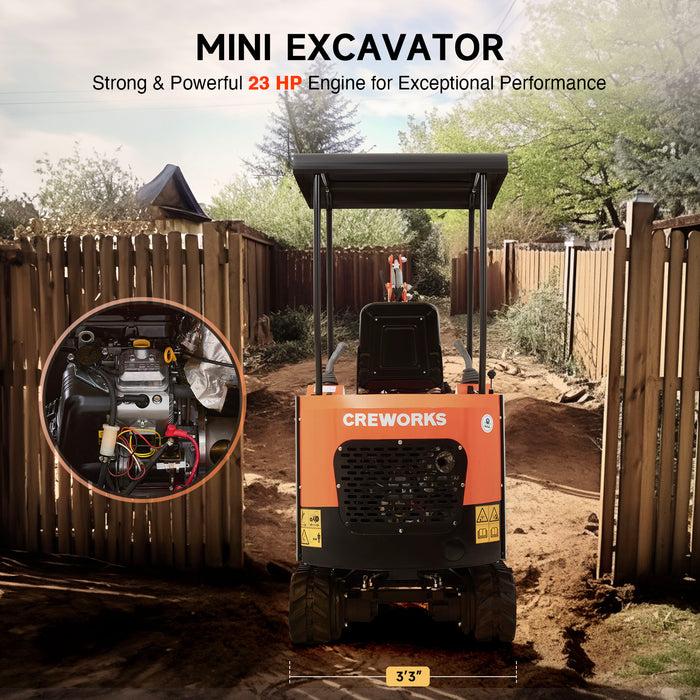

23 HP 1.3 Ton Mini Excavator

23 HP 1.3 Ton Mini Excavator

With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 6 feet and a radius of 9 feet 6 inches to help you dig foundations, bury downspout lines, install electrical services, and more. The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them.

Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites. The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.

Briggs & Stratton Engine

Briggs & Stratton Engine

Equipped with a Briggs & Stratton Dual Cylinder 3864 engine, this compact powerhouse packs advanced technologies, delivering exceptional power and efficiency while being lighter than competitors. Boasting 70% more horsepower and 50% larger displacement than 13.5hp 420cc models, it ensures superior performance.

  • V-Twin OHV Technology: Offers better balance, increased power, and optimized performance for longer life and improved fuel economy.
  • Robust Construction: Features cast iron sleeve, balanced crankshaft, and full-pressure lubrication, ensuring longevity and wear resistance.

70.6 in. MAXIMUM DIGGING DEPTH

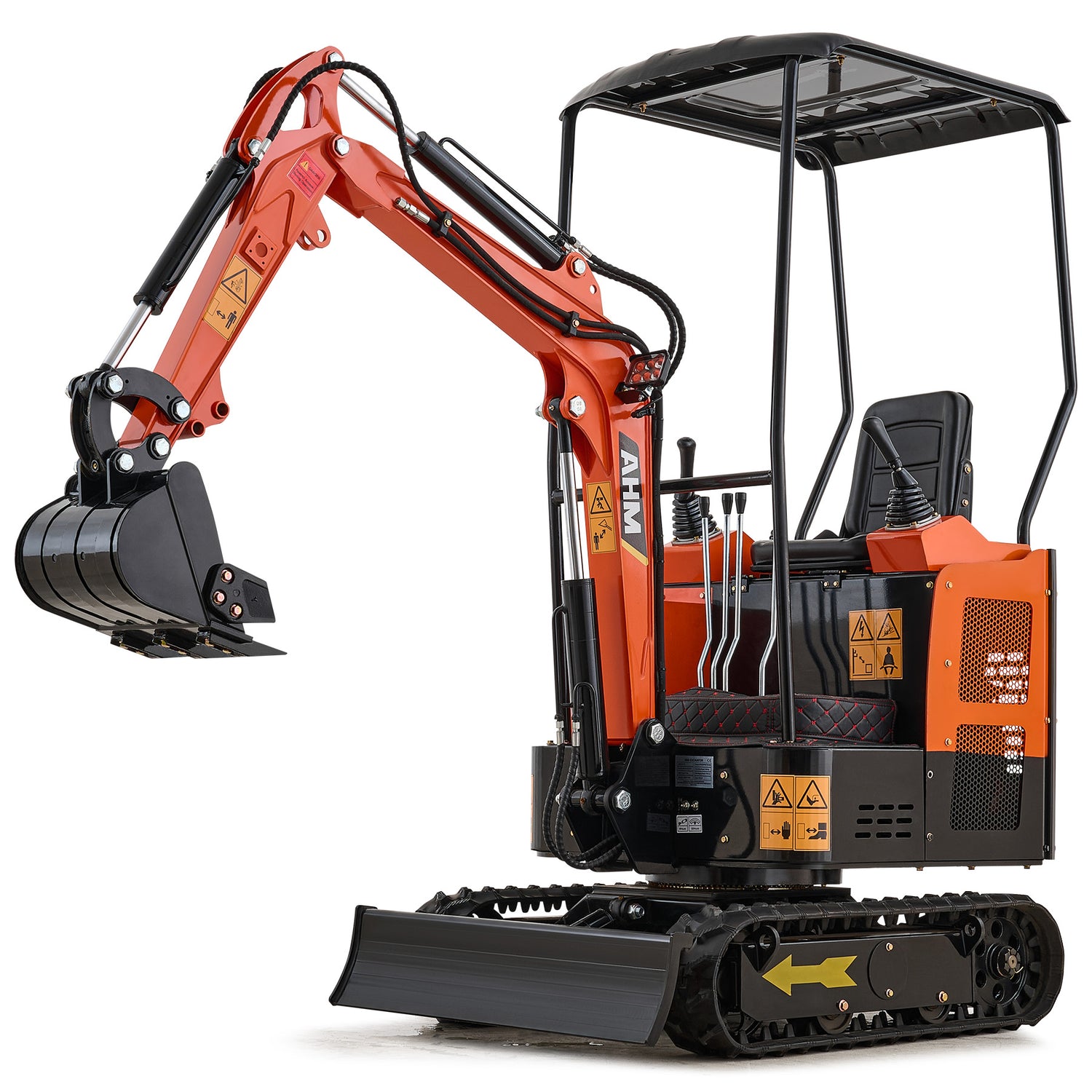

26% Increase in Digging Force

26% Increase in Digging Force

Experience top performance with the AHM mini excavator, offering a 70.6-inch max digging depth and 3262 lbf digging force. Its advanced boom design excels in tough clay, rock, and compacted soil, making it the best choice for demanding jobs.

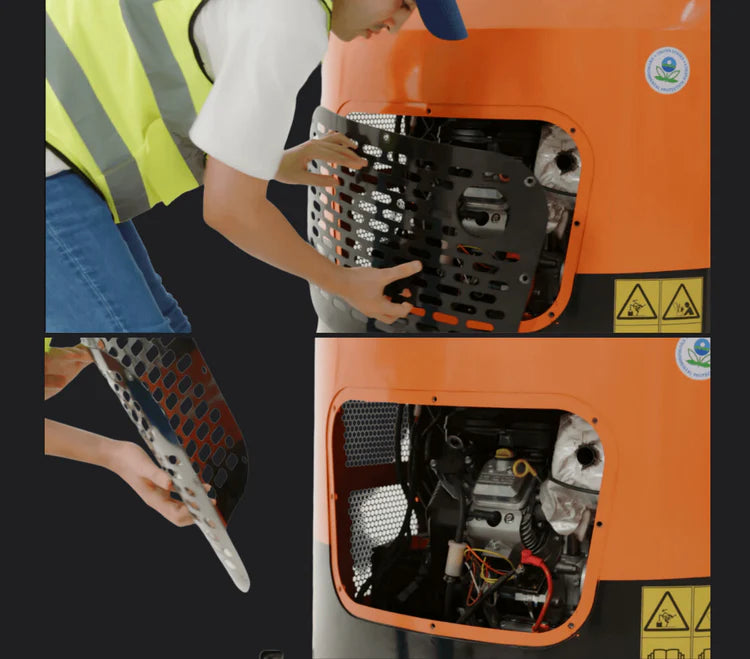

Easy Maintenance

Easy Maintenance

On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently.

www.creworksequipment.com

Compatible with Multiple Attachments

Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like augers, rippers, and mulcher heads (not incl.), making quick work of your concrete cutting and tree mulching.

Hardy Helper for Any Terrain

Hardy Helper for Any Terrain

Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

Resource Download

23 HP 1.3 Ton Mini Excavator User Manual:Download the Manual

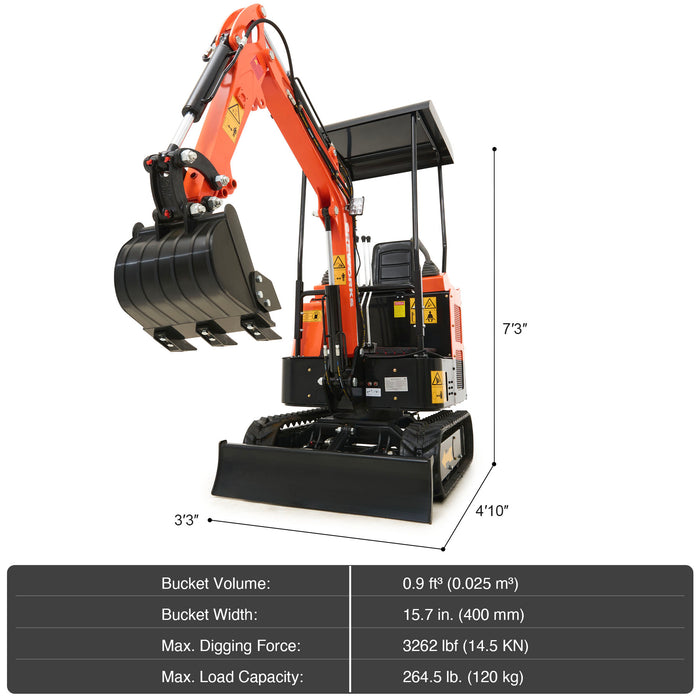

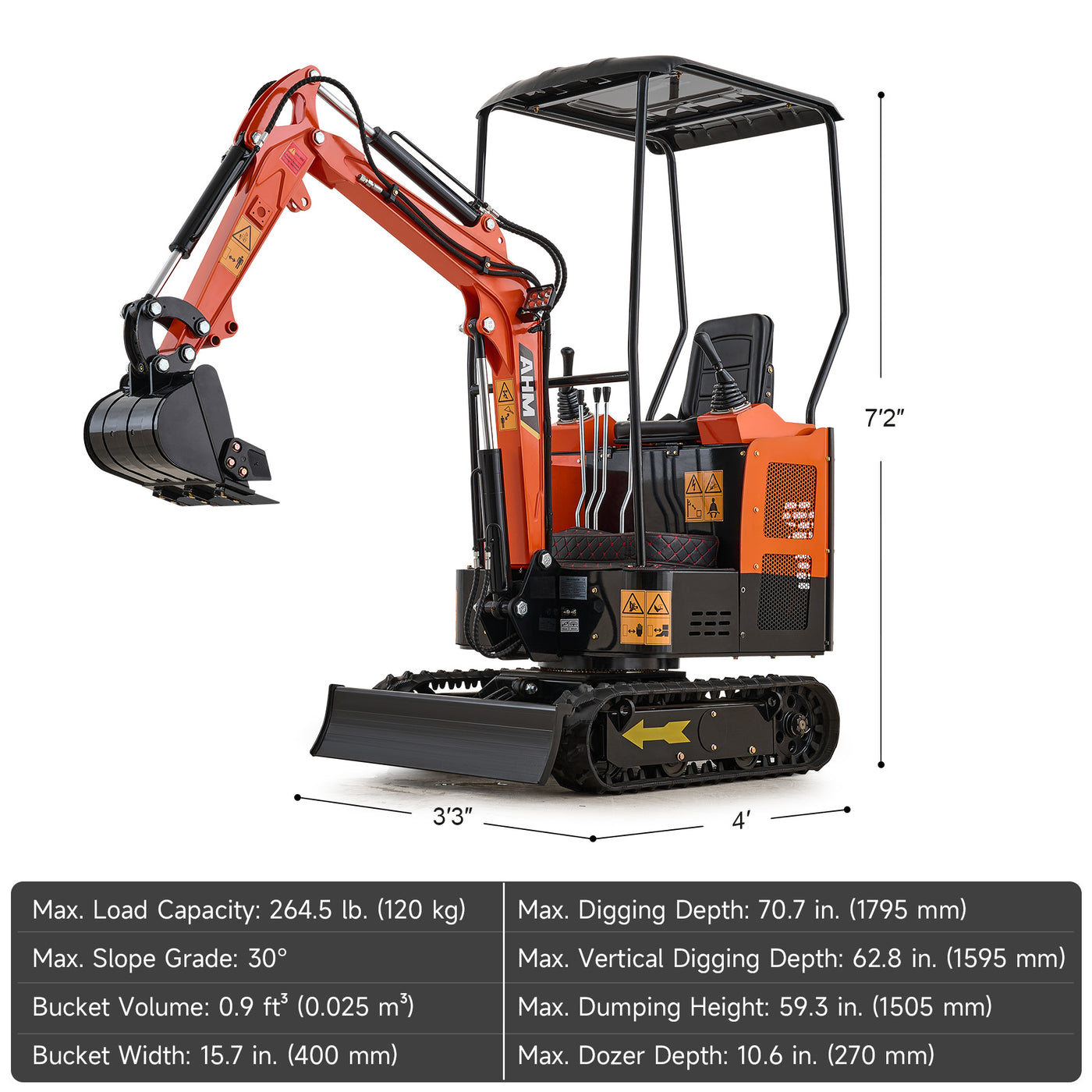

Specification

  • Material: Steel, Rubber
  • Engine Power: 23 hp (17.2 kW)
  • Max. Load Capacity: 265 lb. (120 kg)
  • Max. Slope Grade: 30°
  • Bucket Volume: 0.88 ft³(0.03 m³)
  • Bucket Width: 15.7 in. (400 mm)
  • Max. Digging Depth: 71 in. (1795 mm)
  • Max. Vertical Digging Depth: 62.8 in. (1595 mm)
  • Max. Digging Height: 91.5 in. (2325 mm)
  • Max. Digging Force: 3262 lbf (14.5 KN)
  • Max. Digging Radius: 114.2 in. (2900 mm)
  • Max. Dumping Height: 59.3 in. (1505 mm)
  • Max. Dozer Lift: 12.2 in. (310 mm)
  • Max. Dozer Depth: 10.6 in. (270 mm)
  • Fuel Consumption: 0.4 gal/h (1.5 L/h)
  • Fuel Tank Volume: 1.84 gal. (7 L)
  • Warranty: 1 Year

Package List

  • 1x Mini Excavator
  • 1x Tool Box
  • 1x Instruction Manuals
