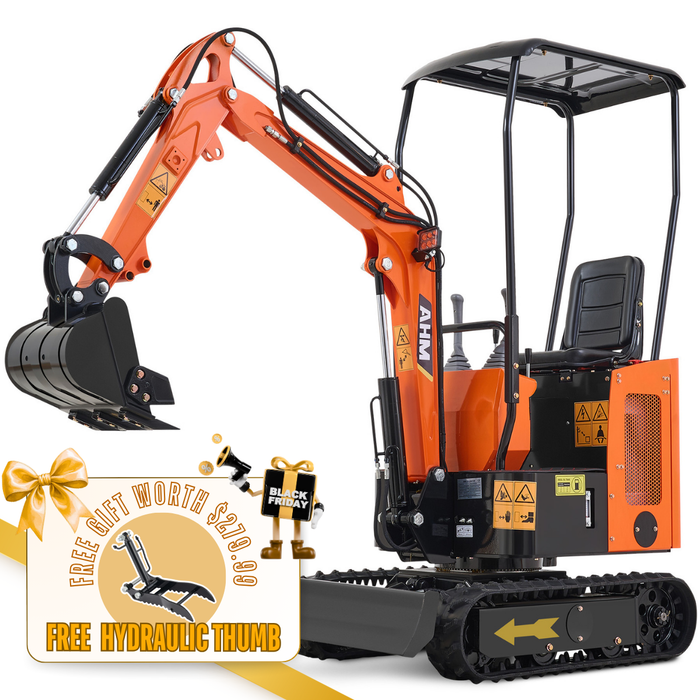

AHM AX-15 | 13.8 HP Kubota Engine Mini Excavator

AHM AX-15 | 13.8 HP Kubota Engine Mini Excavator

Availability:
Low stock
Availability:
Low stock
Save 6% Save 6%
$8,499.99
$8,499.99 - $8,999.99
$8,499.99
$7,999.99
$7,999.99 - $8,499.99
$7,999.99
Standard Bucket Included | Black Friday Special: 15.7-inch Bucket + 🎁 FREE Hydraulic Thumb | 🔥 Save $500 Instantly 🔥
Delivery Option: No Unloading Service Needed

FREE GROUND SHIPPING

Complimentary ground shipping to the lower 48 states, with a standard shipping time of 7-14 days. UNLOADING SERVICE IS NOT INCLUDED. Please review our Shipping Policy before purchasing.

Click here to learn more about shipping details!

WAREHOUSE PICKUP AVAILABLE

We offer self-pickup at our California Warehouse. Pickup hours are 8:00 AM - 4:30 PM. For more information, please check here.

READ BEFORE YOU BUY – REFUND POLICY

Please review our Refund Policy before purchasing to understand our terms and conditions.

Creworks is an officially authorized reseller of AHM equipment and attachments. All AHM branded products sold on our website are clearly labeled and fully supported by Creworks, including warranty and after-sales service.
View Our Authorized Reseller Statement

Ask a Question

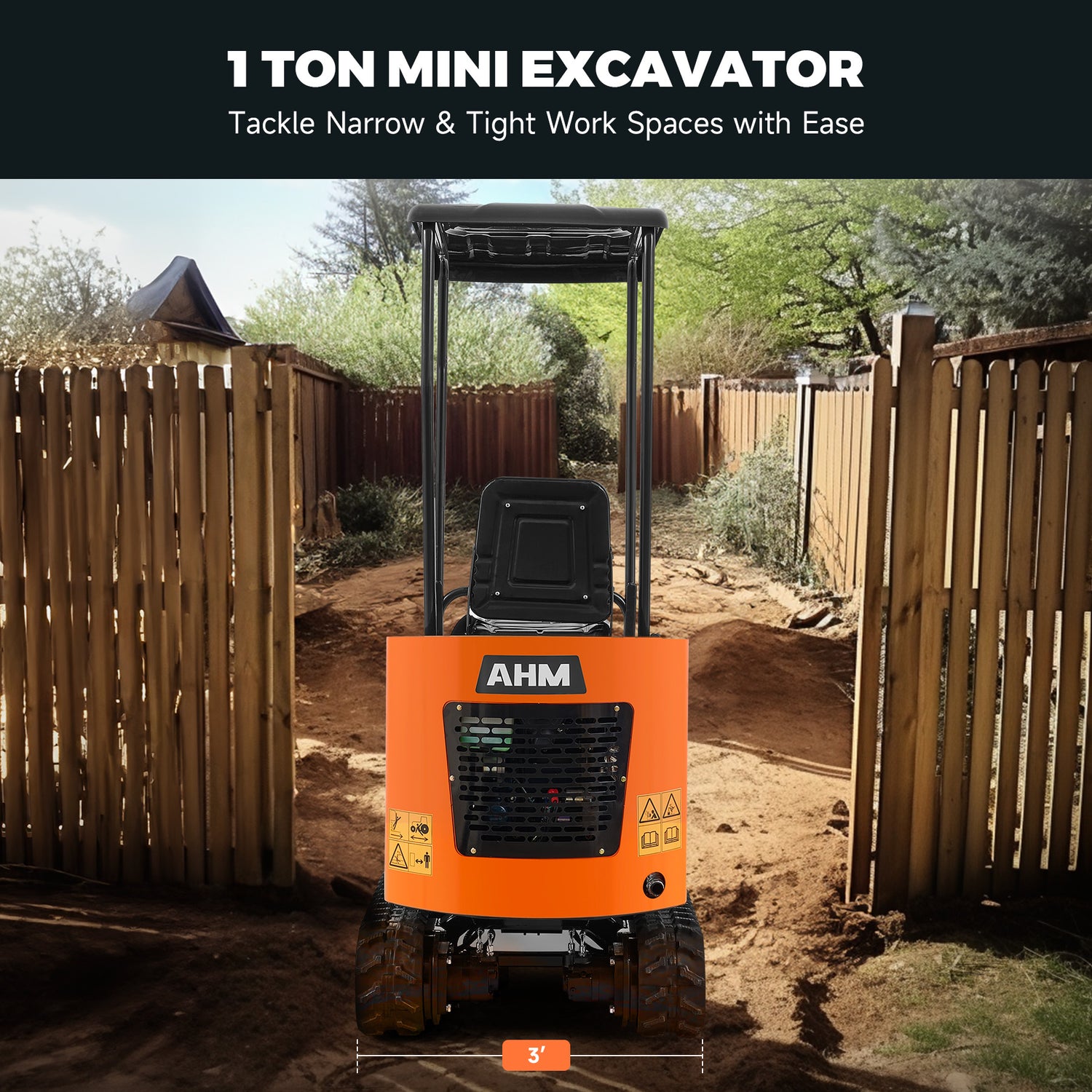

With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces.

Description

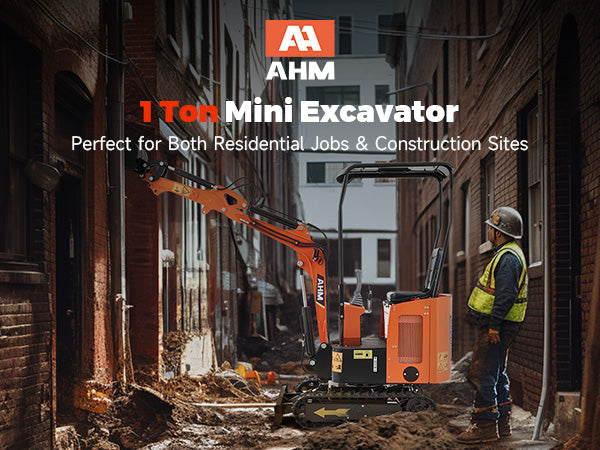

13.8 HP Mini Excavator

13.8 HP Mini Excavator

Get your heavy duty work done with this versatile 1.1 ton mini excavator by Creworks. With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 5 feet 8 inches and a radius of 10 feet to help you dig foundations, bury downspout lines, install electrical services, and more. The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them. Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites. The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.

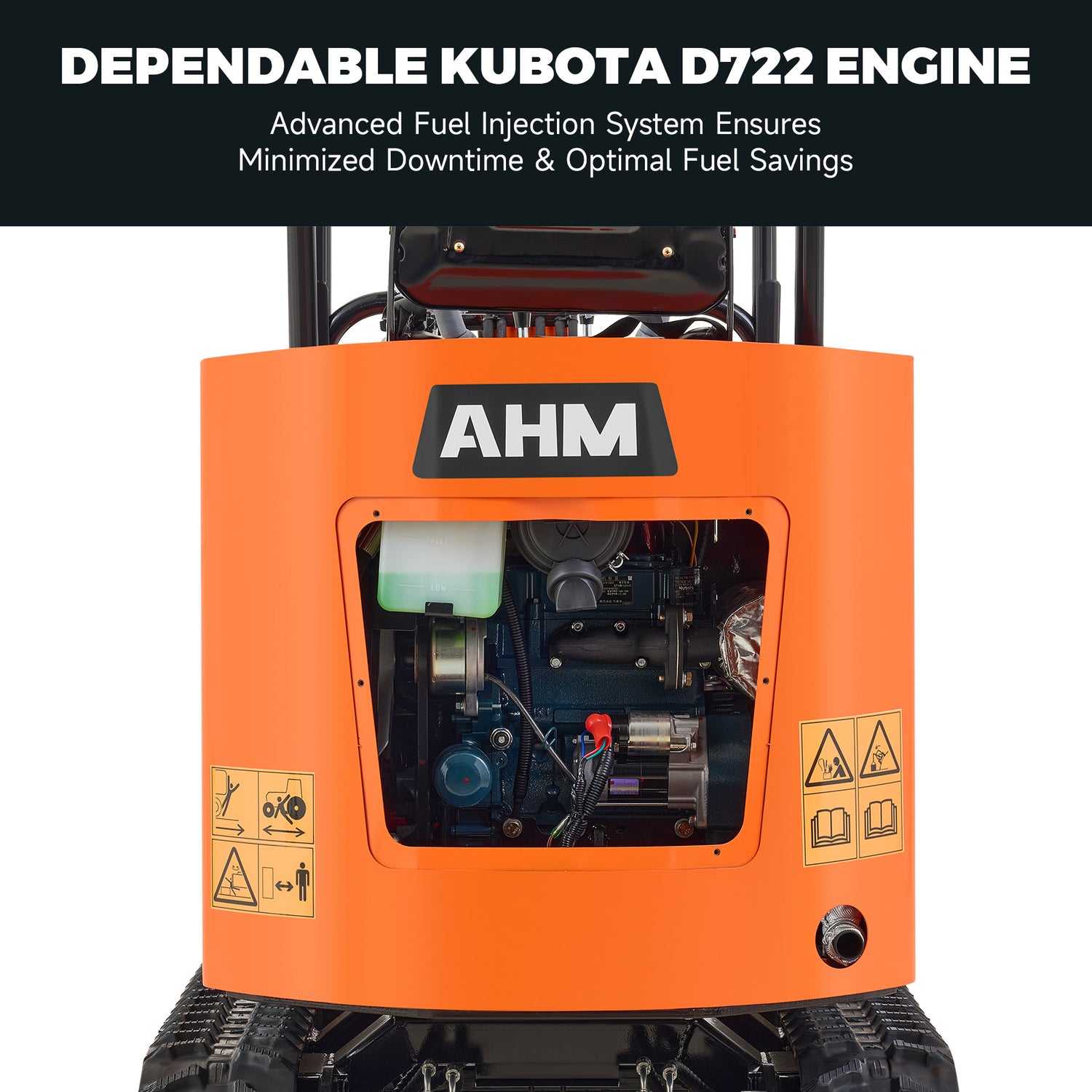

Kubota Efficient Engine

Kubota Efficient Engine

Our heavy-duty mini digger, equipped with the premium 13.8 hp Kubota D722 engine, runs smoother than a breeze. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

  • EPA Tier 4 Compliance: Meets the world's strictest emissions standards in its class.
  • Proven Durability: Chosen for diverse applications for 25 years, setting industry benchmarks.
  • Clean and Quiet Power: Enhanced Three Vortex Combustion System for 50% lower particulate matter in a compact design.

Download Kubota Engine Specifications

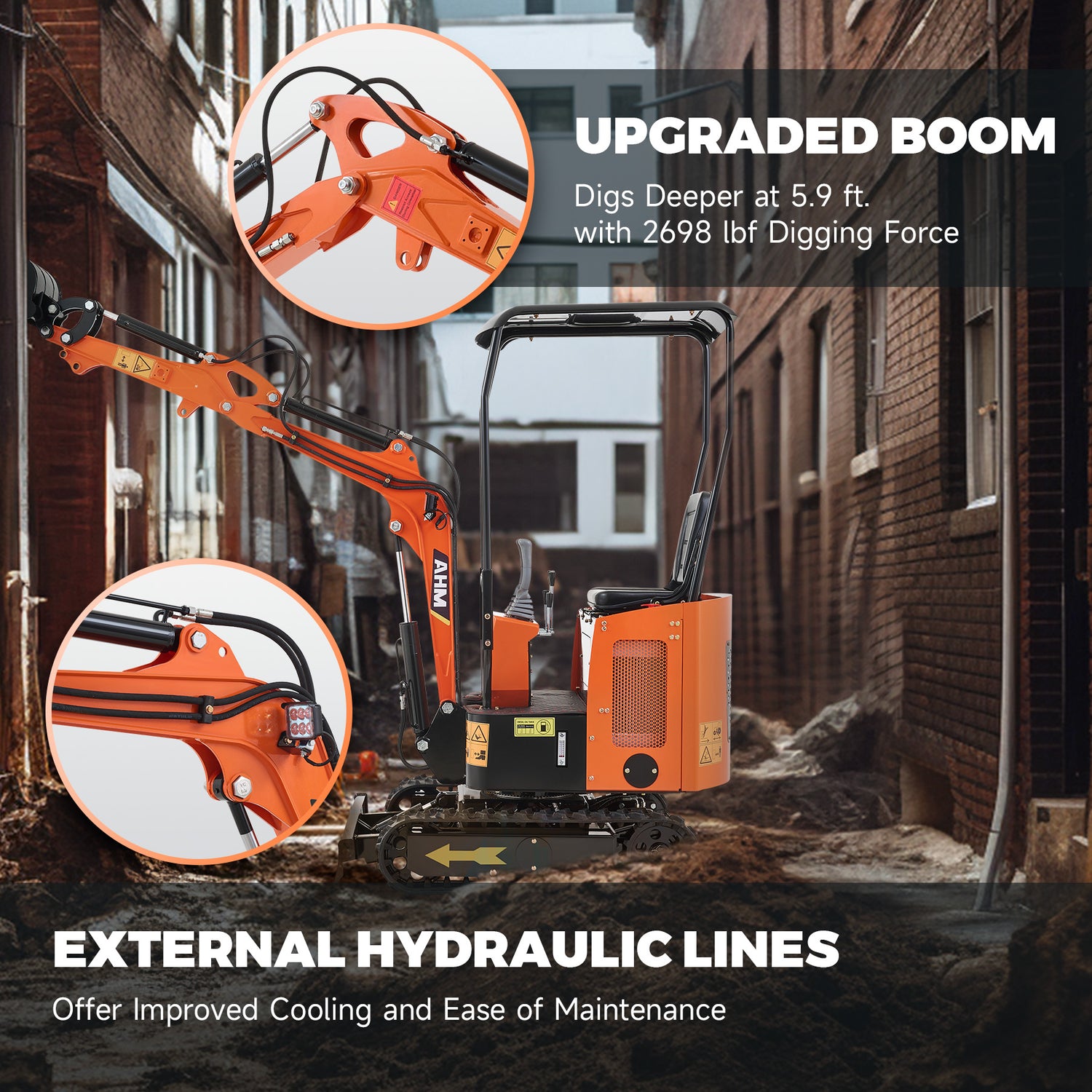

5.7 ft. Maximum Digging Depth

5.7 ft. Maximum Digging Depth

With its Kubota D722 engine, 2698 lbf digging force, and 5.7 ft. digging depth, this light yet powerful mini excavator by AHM is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

Easy Maintenance

Easy Maintenance

Simplify routine check and maintenance with external hydraulic hoses on our mini digger. The easily accessible compartment ensures quick access to vital components, minimizing downtime and maximizing peak performance.

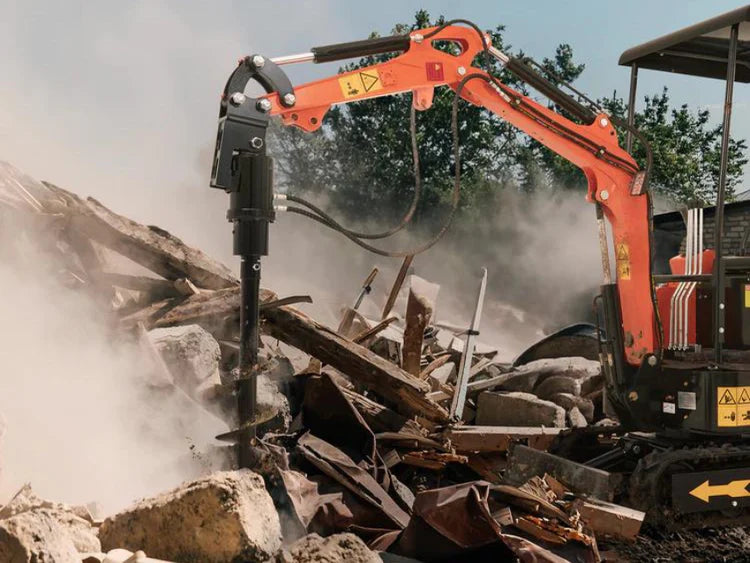

Compatible with Multiple Attachments

Compatible with Multiple Attachments

Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like augers, rippers, and mulcher heads (not incl.), making quick work of your concrete cutting and tree mulching.

Hardy Helper for Any Terrain

Hardy Helper for Any Terrain

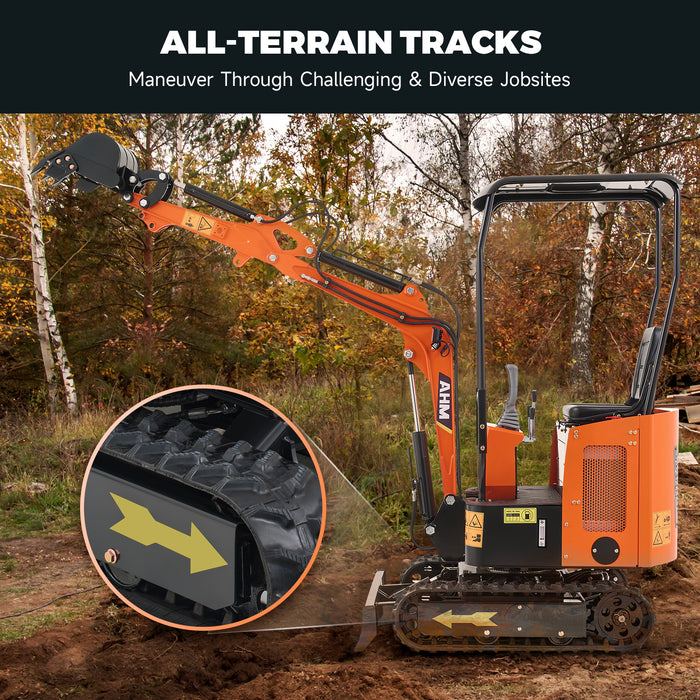

Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

Resource Download

13.8 HP 1.1 Ton Mini Excavator User Manual:Download the Manual

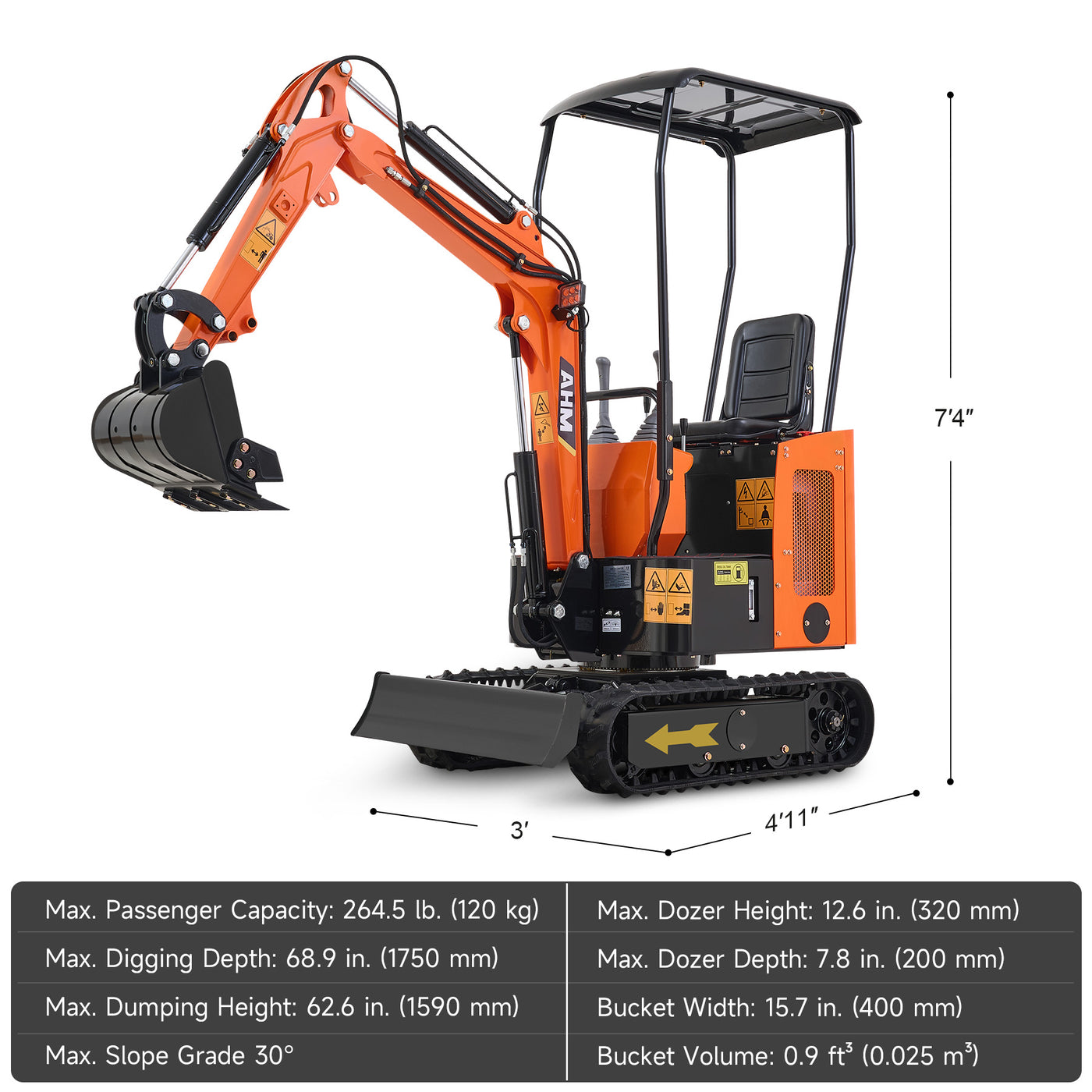

Specification

  • Material: Steel, Rubber
  • Engine Model: Kubota D722
  • Rated Power: 13.8 hp (10.1 kW)
  • Rated Speed: 2600 rpm
  • Fuel Tank Volume: 2.58 gal. (9.74 L)
  • Fuel Consumption: 0.26 gal./h (1 L/h)
  • Hydraulic Tank Volume: 3.4 gal. (12.7 L)
  • Overall Track Length: 48.5 in. (1230 mm)
  • Platform Ground Clearance: 16.2 in. (410 mm)
  • Bucket Volume: 0.88 ft3 (0.03 m3)
  • Bucket Width: 15.7 in. (400 mm)
  • Max. Bucket Digging Force: 2698 lbf (12 KN)
  • Overall Height: 7.3 ft. (2240 mm)
  • Max. Digging Depth: 69 in. (1750 mm)
  • Max. Dumping Height: 62.6 in. (1590 mm)
  • Max. Digging Radius: 120 in. (3050 mm)
  • Dozer Height: 12.6 in. (320 mm)
  • Dozer Depth: 7.8 in. (200 mm)
  • Max. Slope Grade: 30°
  • Net Weight: 1940 lb. (880 kg)
  • Warranty: 1 Year

Package List

  • 1x Mini Excavator
  • 1x Tool Box
  • 1x Instruction Manuals
