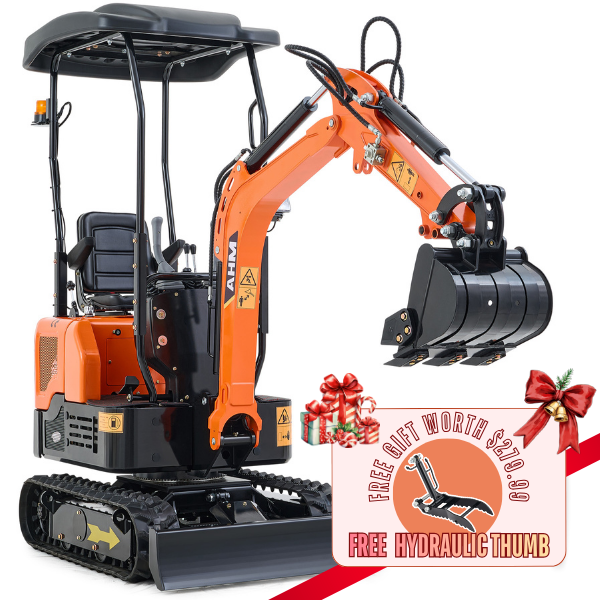

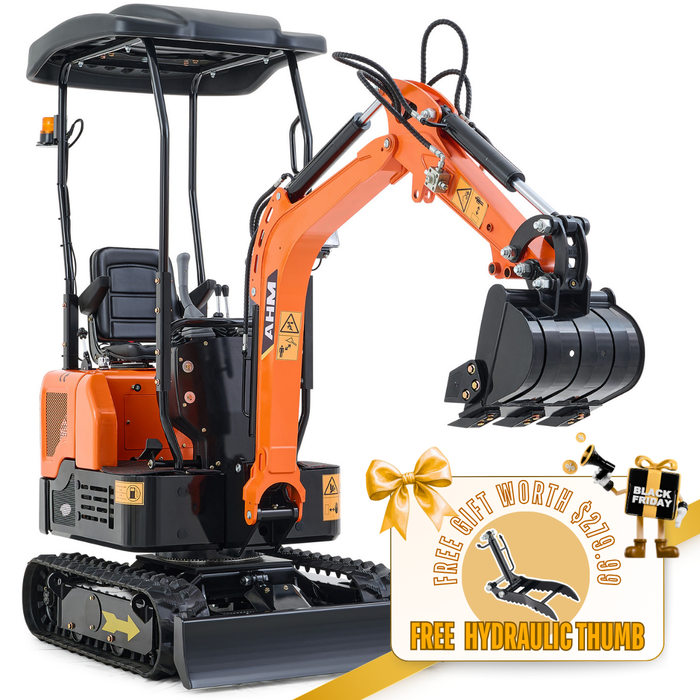

AHM AX-12 | 13.5 HP B&S Engine Mini Excavator

AHM AX-12 | 13.5 HP B&S Engine Mini Excavator

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Save 18% Save 18%
$6,799.99
$6,799.99 - $7,299.99
$6,799.99
$5,599.99
$5,599.99 - $6,099.99
$5,599.99
Standard Bucket Included | Black Friday Special: 15.7-inch Bucket + 🎁 FREE Hydraulic Thumb| 🔥 Save $1200 Instantly 🔥
Delivery Option: No Unloading Service Needed

FREE GROUND SHIPPING

Complimentary ground shipping to the lower 48 states, with a standard shipping time of 7-14 days. UNLOADING SERVICE IS NOT INCLUDED. Please review our Shipping Policy before purchasing.

Click here to learn more about shipping details!

WAREHOUSE PICKUP AVAILABLE

We offer self-pickup at our California Warehouse. Pickup hours are 8:00 AM - 4:30 PM. For more information, please check here.

READ BEFORE YOU BUY – REFUND POLICY

Please review our Refund Policy before purchasing to understand our terms and conditions.

Creworks is an officially authorized reseller of AHM equipment and attachments. All AHM branded products sold on our website are clearly labeled and fully supported by Creworks, including warranty and after-sales service.
View Our Authorized Reseller Statement

Ask a Question

Description

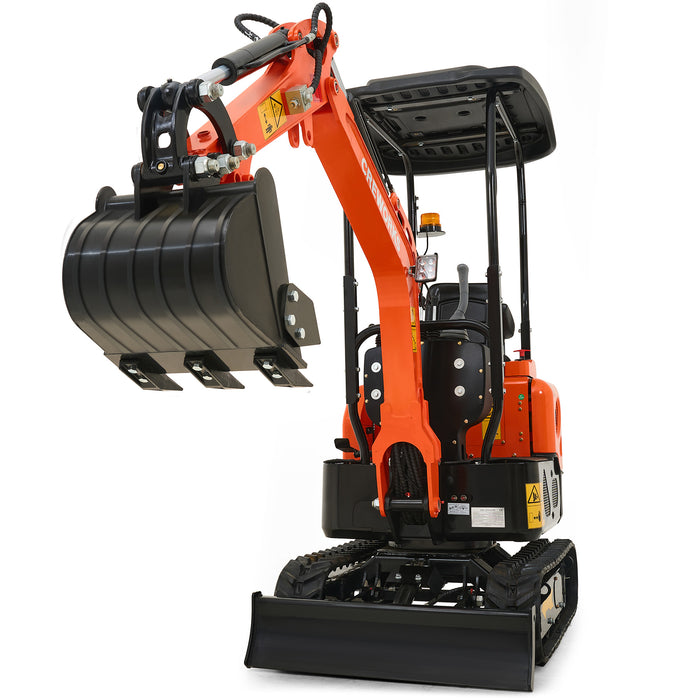

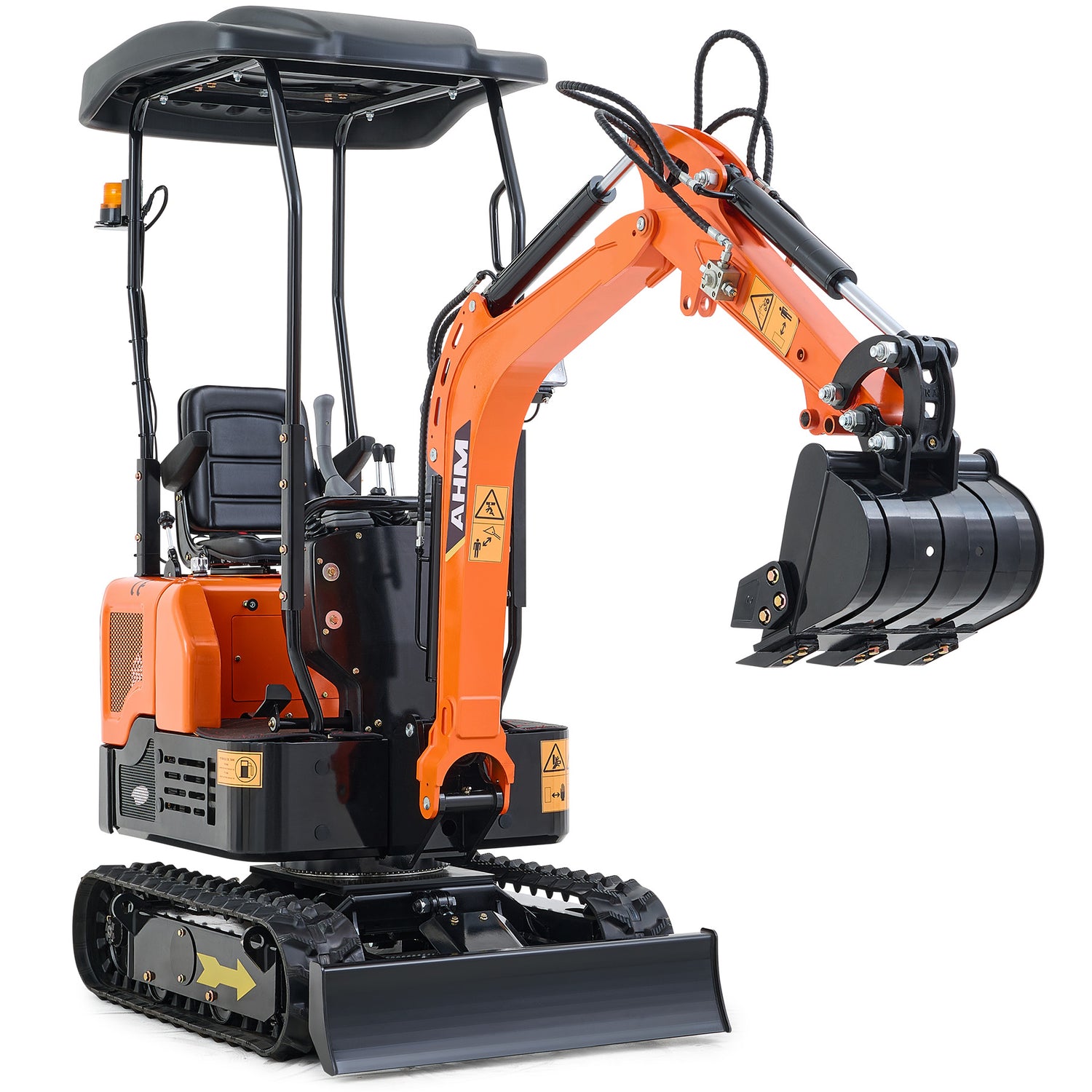

13.5 HP Mini Excavator

13.5 HP Mini Excavator

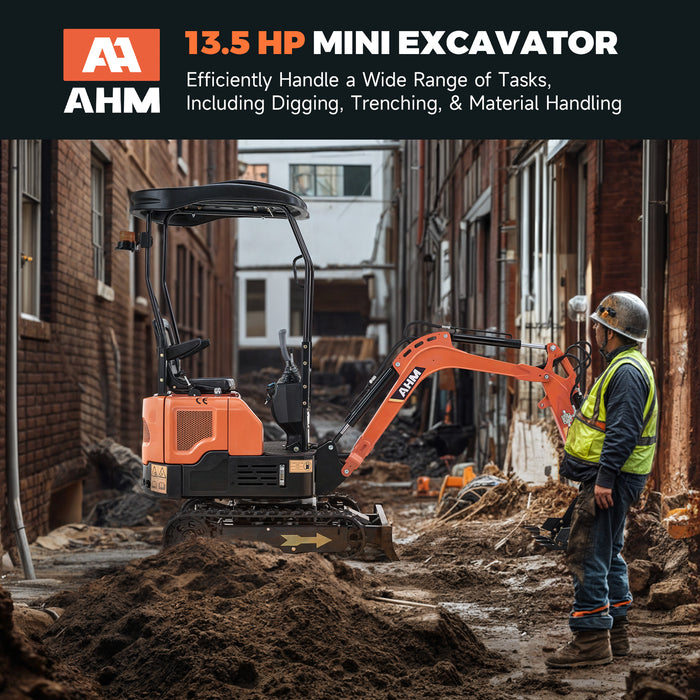

With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 6 feet 1 inch and a radius of 10 feet 3 inches to help you dig foundations, bury downspout lines, install electrical services, and more. The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them. Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites. The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.

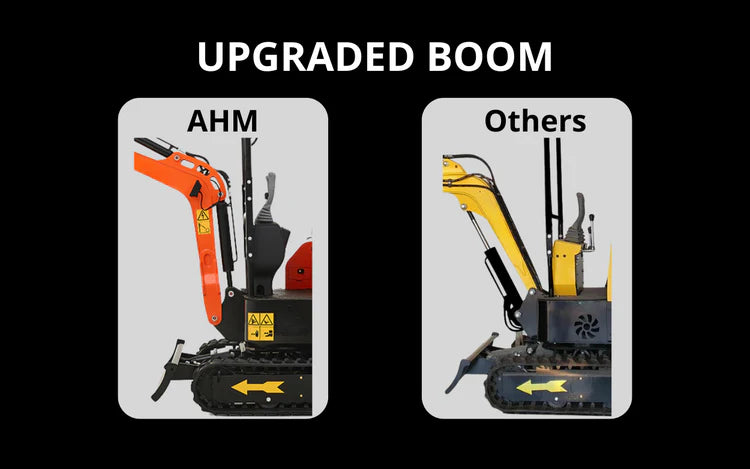

6.1ft. Maximum Digging Depth

6.1ft. Maximum Digging Depth

  • With a compact design, 1 ton operating weight, and a 6.1 ft. maximum digging depth, this light yet powerful mini excavator by Creworks is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Unlike standard 13.5hp mini excavators, this model digs deeper, boasting a 20cm (7.8 inches) increase in depth thanks to the upgraded boom.

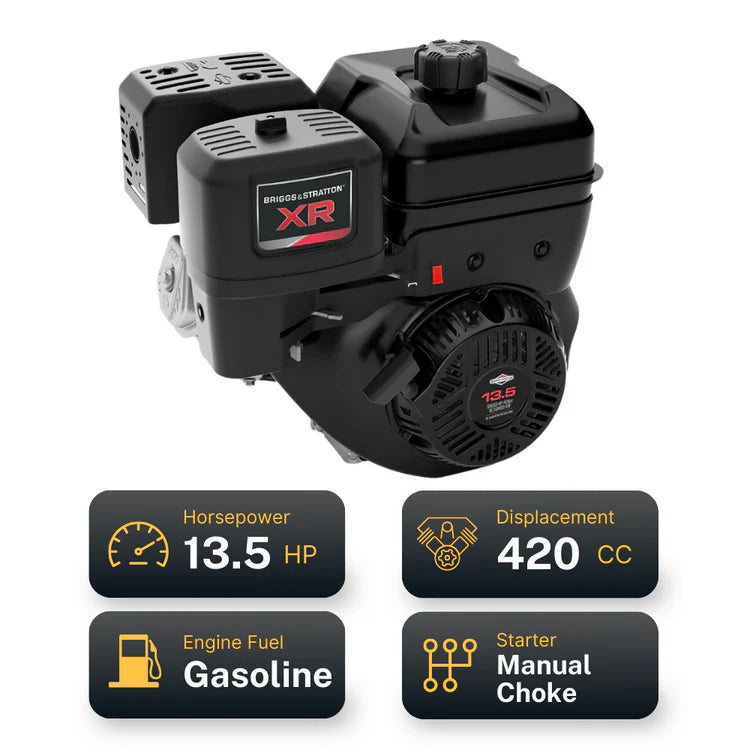

Briggs & Stratton Engine

Briggs & Stratton Engine

With a Briggs & Stratton 25T2 engine, our heavy-duty mini digger delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease, ideal for demanding excavation projects. Enjoy smooth operation, minimal vibrations, and long-lasting durability.

  • Extended Lifespan: This engine surpasses Briggs & Stratton's CR Series standard lifespan by threefold, ensuring prolonged performance.
  • Durable Construction: Featuring a forged crankshaft and Dura-Bore™ cast iron sleeve, this engine is built to withstand wear and tear, ensuring long-term reliability.

Download B&S XR 13.5 Engine Specifications

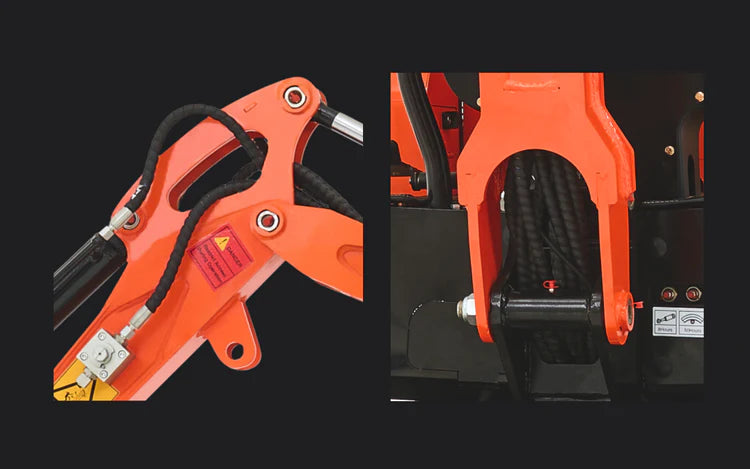

Enhanced Safety with Internal Hydraulic Hoses

Enhanced Safety with Internal Hydraulic Hoses

  • By routing the hydraulic lines within the machine, this design minimizes damage and aging, improving overall safety.
  • Each hose is also wrapped in a protective layer, ensuring resilience against common impacts and further safeguarding the equipment.
  • Internal hydraulic hoses also improve the compact excavator's appearance, giving it a sleeker look.

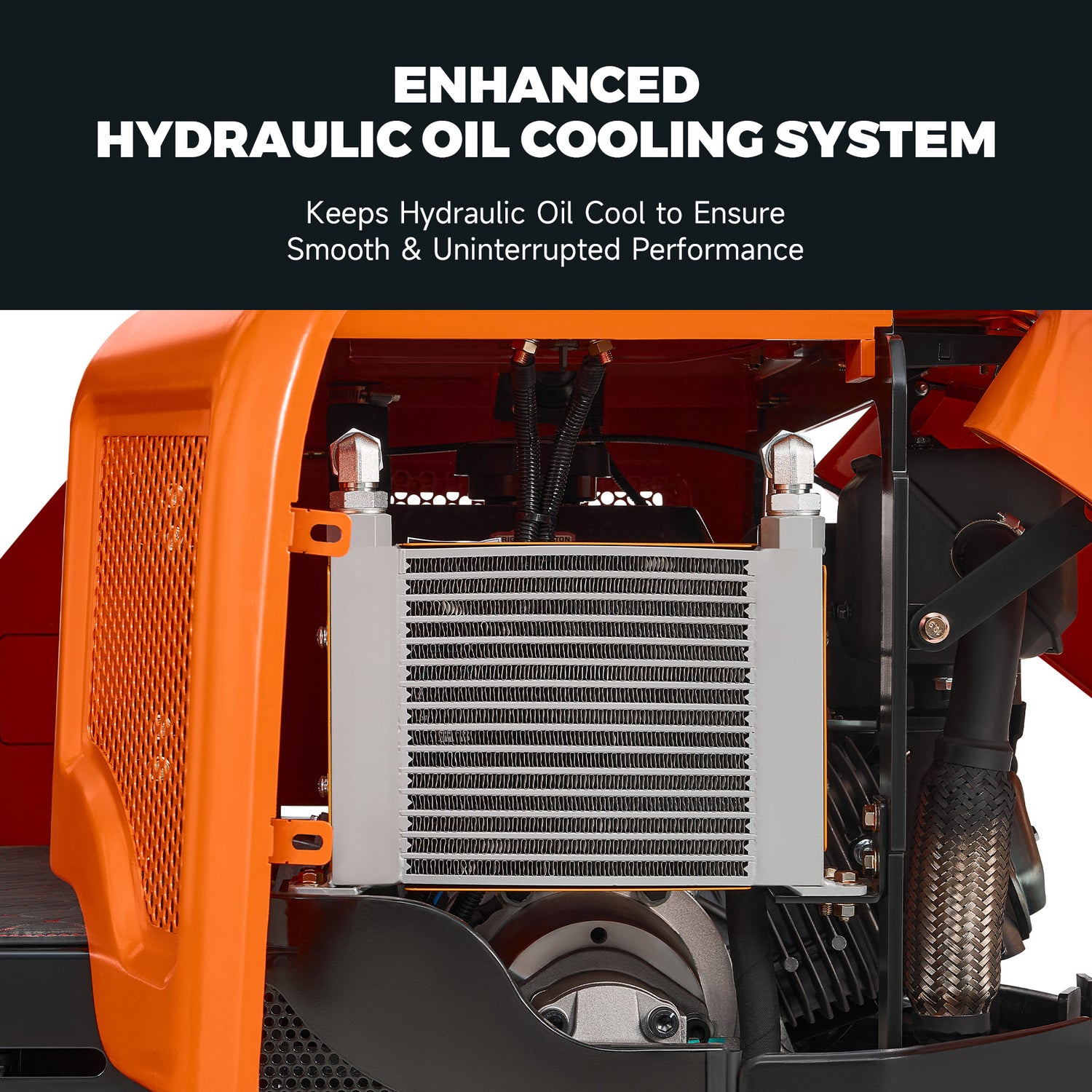

Compatible with Multiple Attachments

Compatible with Multiple Attachments

Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like augers, rippers, and mulcher heads (not incl.), making quick work of your concrete cutting and tree mulching.

Dependable Design

Dependable Design

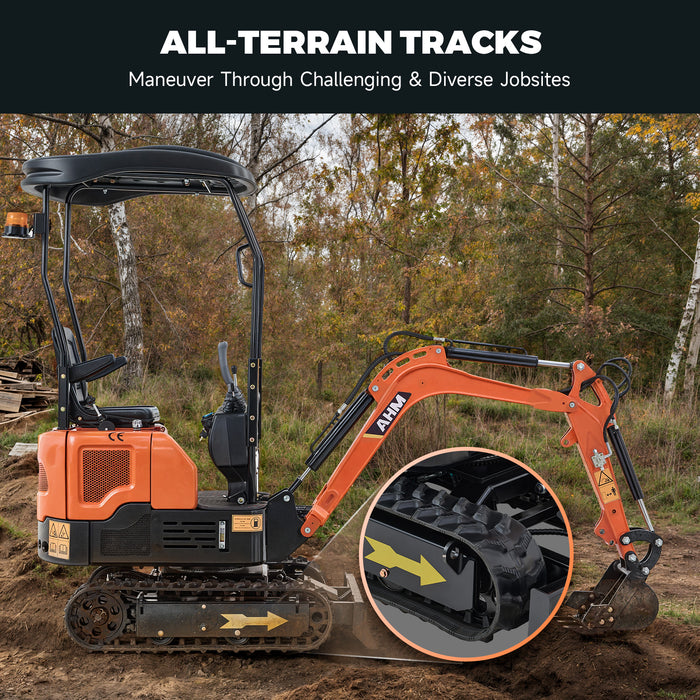

Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

Resource Download

13.5 HP 1 Ton Mini Excavator User Manual:Download the Manual

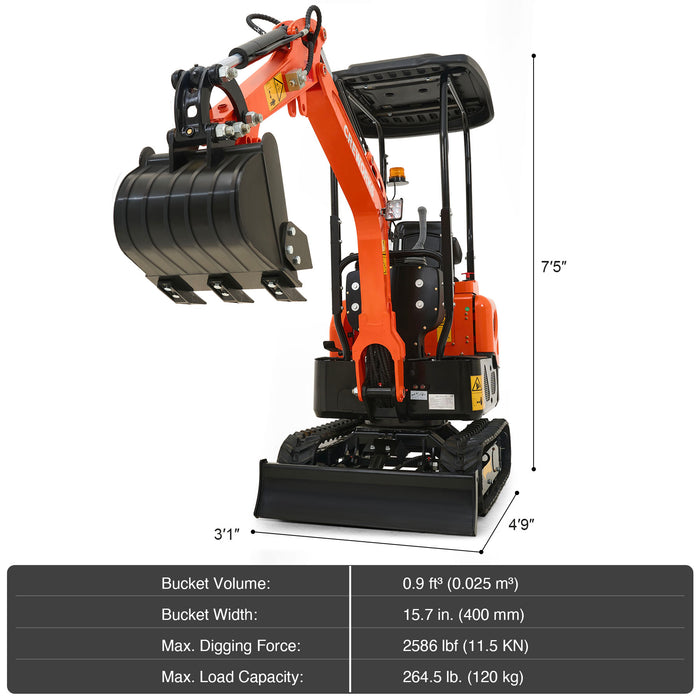

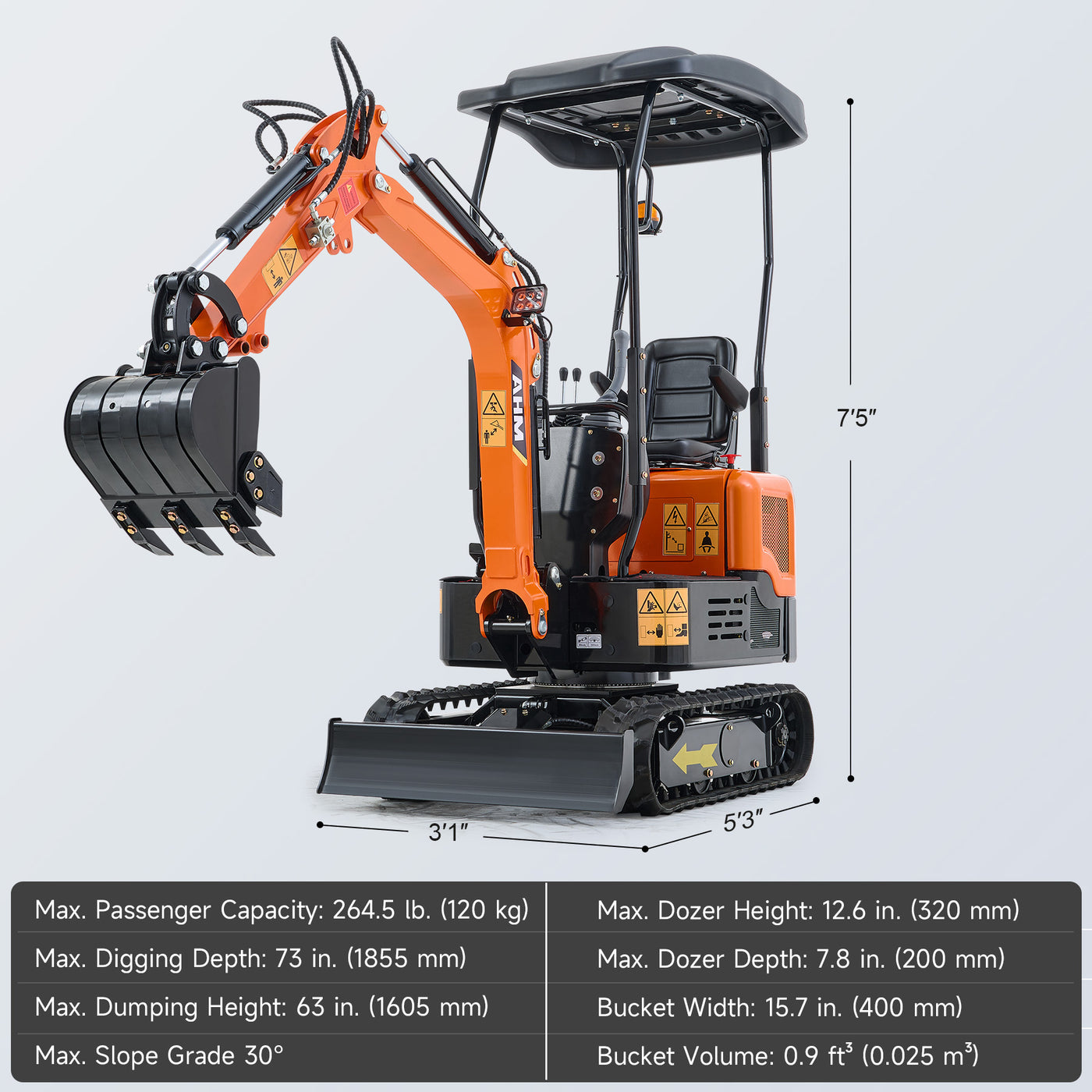

Specification

  • Material: Steel, Rubber
  • Engine Power: 13.5 hp (10 kW)
  • Max. Load Capacity: 265 lb. (120 kg)
  • Max. Slope Grade: 30°
  • Bucket Volume: 0.88 ft³(0.03 m³)
  • Bucket Width: 15.7 in. (400 mm)
  • Max. Digging Depth: 73 in.(1855 mm)
  • Max. Vertical Digging Depth: 65 in. (1655 mm)
  • Max. Digging Height: 96.5 in. (2450 mm)
  • Max. Digging Force: 2585 lbf (11.5 KN)
  • Max. Digging Radius: 123.2 in.(3130 mm)
  • Max. Dumping Height: 63.2 in.(1605 mm)
  • Max. Dozer Lift: 12.6 in. (320 mm)
  • Max. Dozer Depth: 7.9 in. (200 mm)
  • Fuel Consumption: 0.26 gal/h (1 L/h)
  • Fuel Tank Volume: 1.74 gal. (6.6 L)
  • Warranty: 1 Year

Package List

  • 1x Mini Excavator
  • 1x Tool Box
  • 1x Instruction Manuals
